Item specifics
  • Aerial Photography: Yes
  • FPV Operration: No
  • Frequency: 72kmh
  • Main Rotor Diameter: As description show
  • Camera Integration: Camera Included
  • Brand Name: EACHINE
  • Connectivity: Remote Control
  • Action Time: Others
  • Control Channels: 6 Channels
  • Remote Distance: 500m
  • Camera Features: 4K HD Video Recording
  • Gyro: 6 Axle
  • Model Number: Eachine Racer 250
Product Description




  Description Features

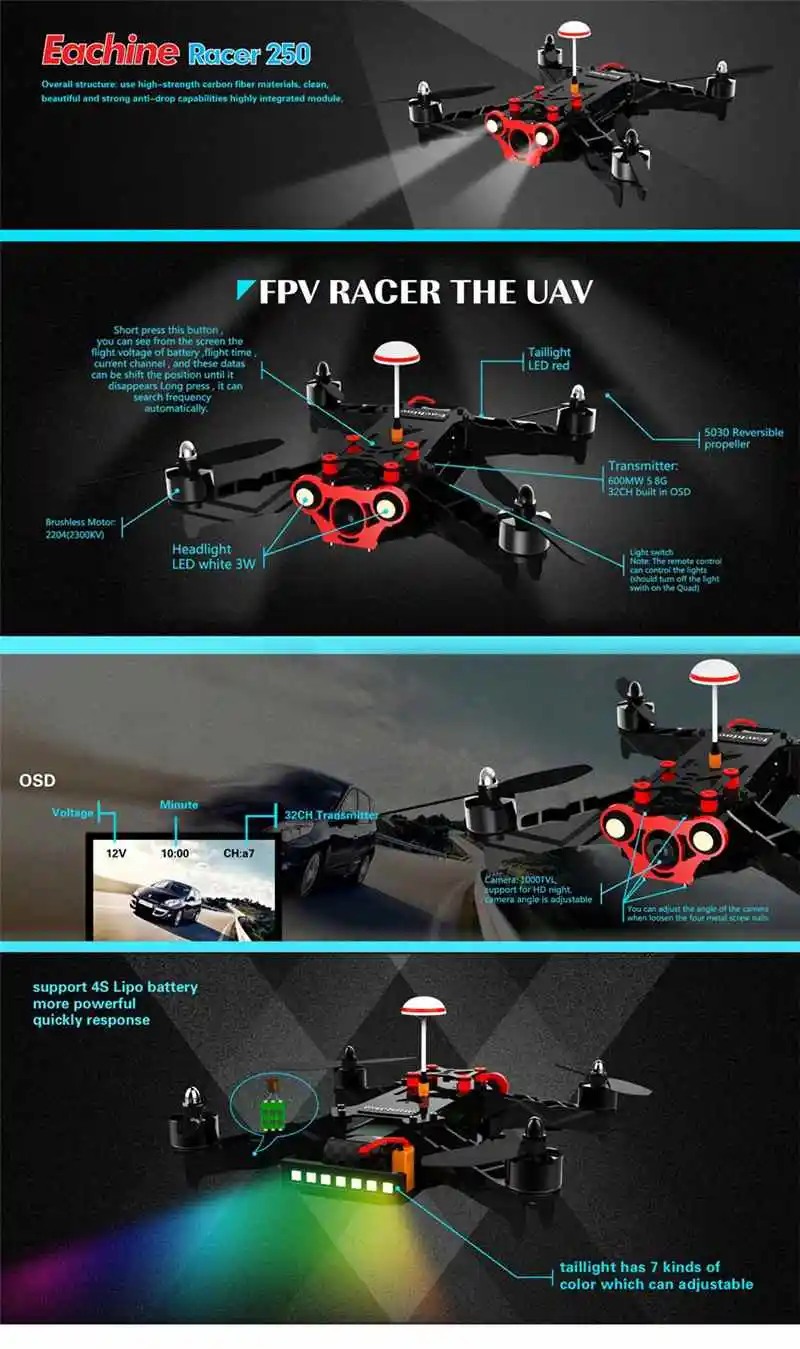

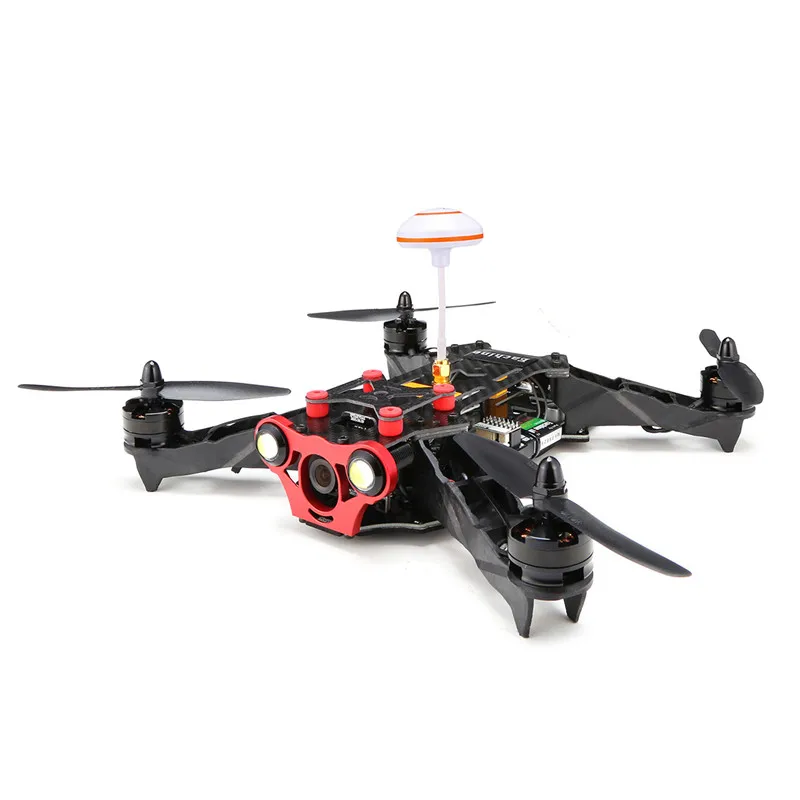

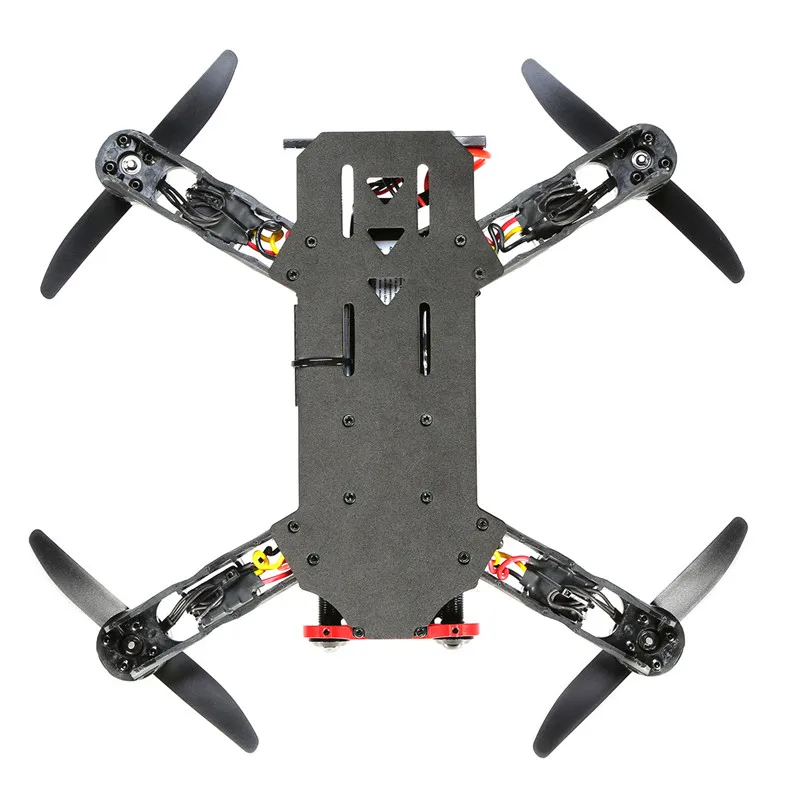

Racer 250 FPV Drone
Main wing length: 140mm
Size: 220x233x50
Weight: 400g (without battery)
Headlight LED: white 3W
Camera: 1000TVL, support for HD night, camera angle is adjustable
Brushless motor: 2204 2300KV
Brushless ESC: Simonk 12A

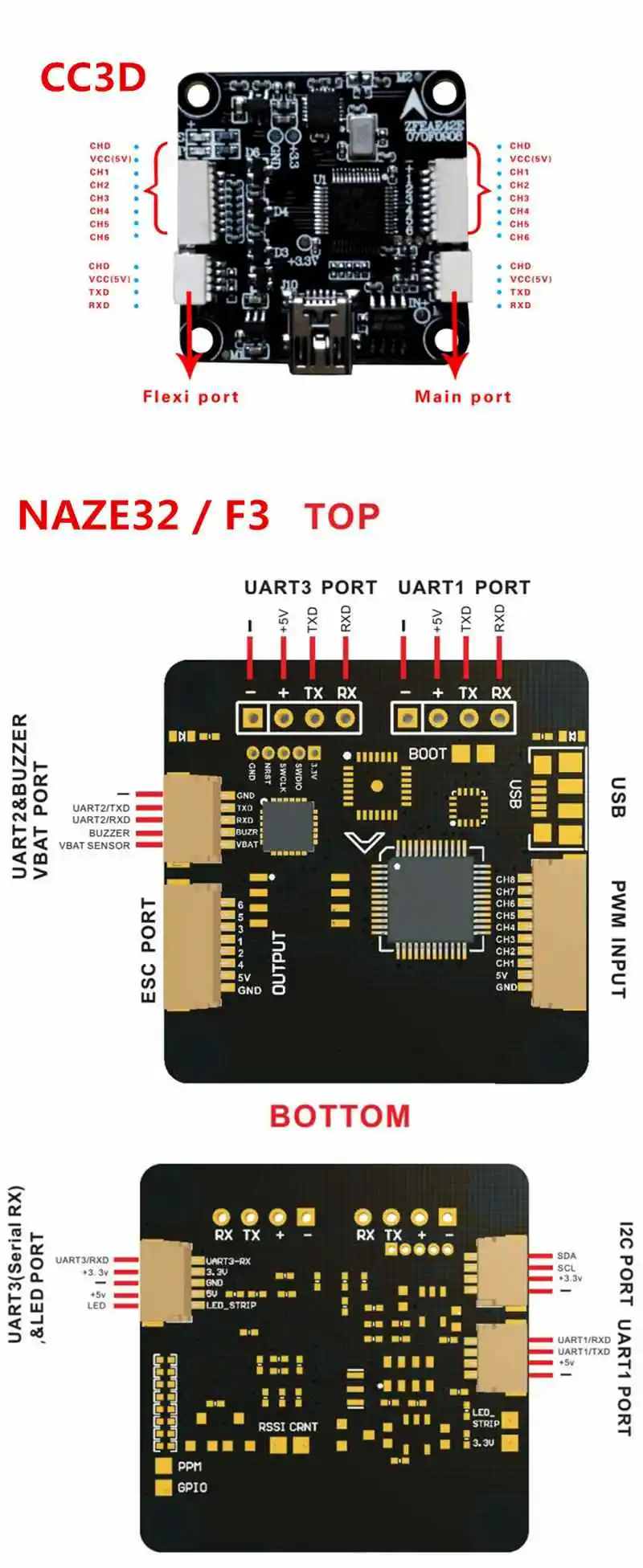

Flight controller: optional F3 6DOF, NAZE32 6DOF, CC3D
Receiver: Eachine I6 2.4G 6CH Receiver (included)
Remote control: Eachine I6 2.4G 6 channel (included)
Lipo battery: 11.1V 1500mAh 25C 3S
Transmitter: 600mw 5.8G 32CH built in OSD
Flight time: 10-14 mins
Working temperature:  -10°C to +40°C
Real-time image transmission, automatic search frequency,
snowflakes screen
bulit-in OSD (the flight voltage of battery, flight time, current channel).
Carbon fiber, super anti-fall structure.
Easy disassembly quick change propeller device.
Ultrafast flight speed easily manipulated.
Long distance remote control high sensitivity.
Enjoy ignoring crossing barriers.

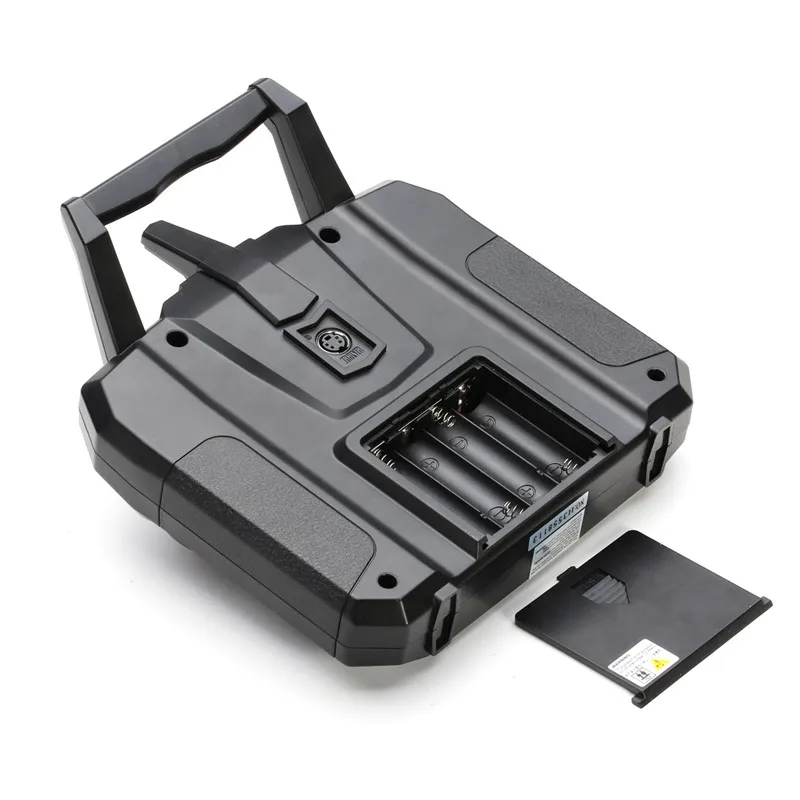

Eachine I6 2.4G Transmitter Channels: 6 Channels
RF Range: 2.40-2.48GHz
chwidth: 500KHz
ch: 142
RF Power: Less Than 20dBm
Sensitivity: 1024
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output: PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Weight: 392g
Power: 6V 1.5AA*4
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
Size: 174x89x190mm
On-line update: yes
Model Memories: 20
Works in the frequency range of 2.405 to 2.475GHz.This ch
has been divided into 142 independent channels,each radio
system uses 16 different channels and 160 different types of
hopping algorithm.

This radio system uses a high gain and high quality multi directional
antenna,it covers the whole frequency ch. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from
the unique
transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.

This radio system uses low power electronic components and
sensitive receiver chip.The RF modulation uses intermittent
signal thus reducing even more power consumption.
Eachine I6 2.4G 6 channel Receiver   Channels: 6 Channels
RF Range: 2.40-2.48GHz
chwidth: 500KHz
ch: 142
RF power:less than 20dBm
RF.receiver sensitivity:-105dBm
ANT length: 26mm
Weight:6.4g
Power:4.0-6.5V
Size: 40.4x21.1x7.35mm
i-BUS port: NO
Data Acquisition port: NO

Package included:
1 x Eachine Racer 250 FPV Drone
1 x Eachine I6 2.4G Transmitter
1 x Eachine I6 2.4G Receiver
1 x 1 x F3 6DOF or NAZE32 6DOF or CC3D flight controller
4 x Simonk 12A ESC
2 x CW 2204 2300KV motor
2 x CCW 2204 2300KV motor
2 x black CW propeller
2 x black CCW propeller
2 x white CW propeller
2 x white CCW propeller
1 x mushroom antenna
1 x B3AC balance charger
1 x 11.1V 1500mAh 25C 3S battery
1 x tail light LED colorized
2 x headlight LED white 3W
1 x 1000TVL camera
1 x 600MW 5.8G 32CH transmitter built in OSD
1 x remote control strap




























Packaging Details
  • Unit Type: piece
  • Package Weight: 1.5kg (3.31lb.)
  • Package Size: 24cm x 25cm x 6cm (9.45in x 9.84in x 2.36in)
