Report item
Item specifics
  • Aerial Photography: Yes
  • Connectivity: APP Controller
  • Gyro: N
  • Model Number: A3
  • Remote Distance: N
  • Camera Features: 1080p HD Video Recording
  • Camera Integration: Camera Not Included
  • Sensor Size: 1/3.0 inches
  • FPV Operration: No
  • Frequency: N
  • Main Rotor Diameter: N
  • Optical Zoom Ratio: 10x
  • Action Time: 14min
  • Brand Name: FLYPRO
  • Pixels: 4.01-5 million
  • Control Channels: 3.5 Channels
Product Description

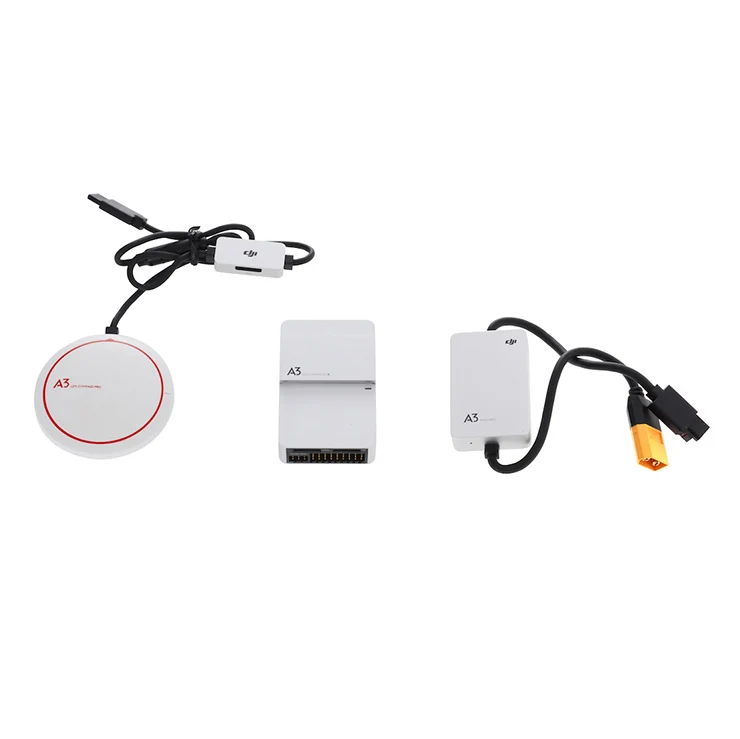

DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter

DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter DJI A3 Flight Controller and GPS-Compass Pro and LED Module and PMU for Multicopter

Features:

• GPS-Compass Pro Triple Modular Redundancy
• Precision Controls with Fault-Tolerance
• Compatible with D-RTK GNSS, Smart ESCs, Intelligent Batteries, and Lightbridge 2
• DJI SDK Compatibility
• Precise Configuration with DJI Assistant 2

Specification :

GENERAL

Weight A3 Pro: 386g
A3: 186g
Power Consumption A3 Pro: Max. 16W
A3: Max. 8W
Size Controller: 64mm x 42mm x 19.5mm
PMU: 51mm x 34mm x 13.5mm
External IMU: 34mm x 26.5mm x 20mm
GPS-Compass Pro: 61mm (diameter) x 13mm
LED: 27mm x 27mm x 8mm
Built-in Functions Built-in PMU
Intelligent Flight Modes
Low voltage protection
DJI Smart Battery Protection
Motor overload detection
External SBUS receiver
Lightbridge 2 receiver
8 function channels (including 4 configurable direction channels)
SDK

HOVERING PERFORMANCE

Hovering Accuracy
  • Vertical: ± 0.5m
  • Horizontal: ± 1.5m
DJI RTK GPS Vertical: ± 0.03m
Horizontal: ± 0.02m

PERIPHERAL

Supported Multi-rotor Quadcopter: I4X4;
Hexacopter: I6X6Y6IY6
Octocopter: X8I8V8
Supported ESC 400Hz frequency
Recommended Battery 3S to 12S LiPo or DJI Smart Battery Assistant Software System Requirement Windows 7 /8 /10 (32 or 64 bit)
Mac OS

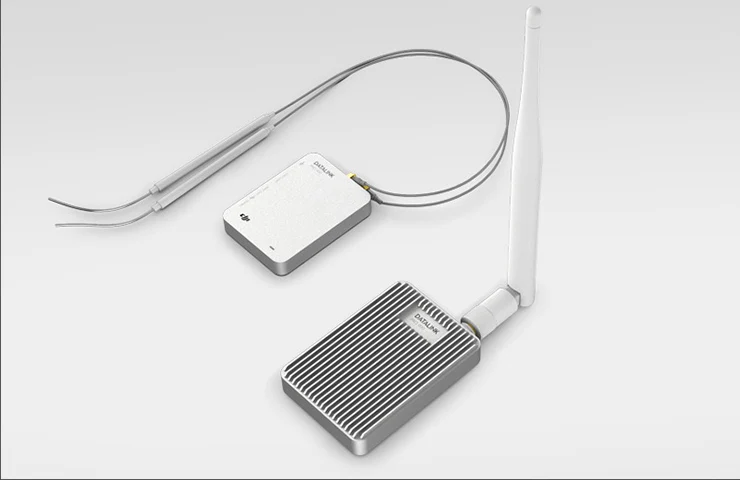

Recommended Radio Lightbridge 2, S-BUS or D-BUS Other DJI Products Supported Z15, Ronin-MX, S900, S1000, S1000+,iOSD, D-RTK, DATALINK PRO etc.
Operating Temperature -10°C to +45°C

FLIGHT PERFORMANCE

Maximum Wing Resistance <10m/s Max Yaw Angular Velocity 150 deg/s
Max Tilt Angle 35° Ascent/Descent Ascent: 5m/s
Descent: 4m/s

PROTECTION

Motor Fail Protection Minimum 6 axis Propulsion Protection Motor Overload
No Fly Zones Supported Low Battery Level Warning (only for DJI Intelligent Flight Battery) Smart RTH
Low Battery Voltage Warning Supported

EXTENDING FUNCTION

PWM I/O Ports F1-F4 ports for output F5-F8 ports for I/O function iOSD Data Storage Built-in data recorder

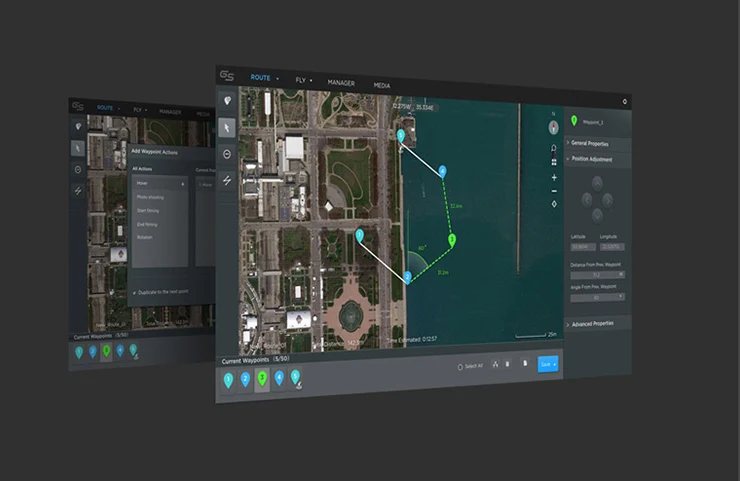

Ground Station It can be realized in DJI GO APP With Lightbridge 2, and in PC Ground Station with Lightbridge 2 or DATALINK PRO. Intelligent Flight Modes (with Lightbridge 2) Point of Interest, Waypoints, Home Lock and Course Lock.
Remote Parameter Adjustment It can be realized in DJI GO APP With Lightbridge 2 PC Assistant DJI ASSISTANT 2, support simulator

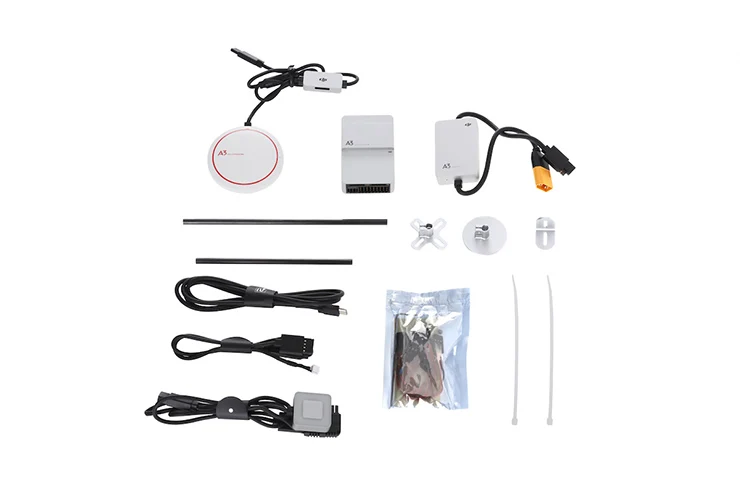

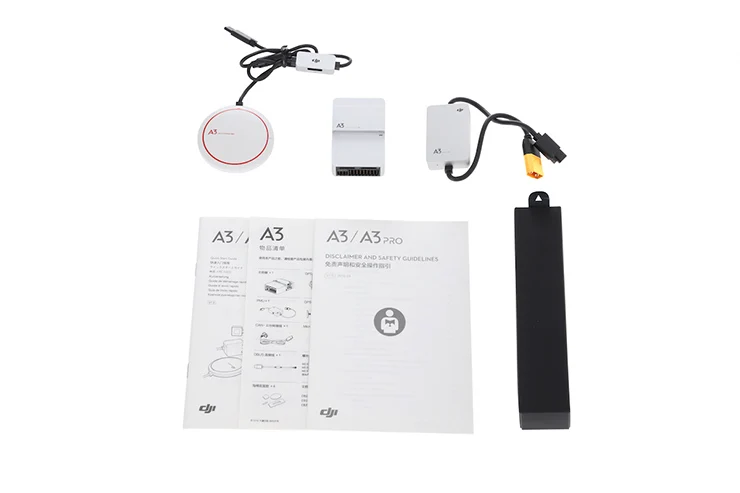

Includes:

• 1 *  Flight Controller
• 1 *  GPS-Compass Pro
• 1 *  LED Module
• 1 *  PMU
• 1 *  GPS Module Bracket
• 1 *  LED mounting bracket
• 1 *  CNA-Gimbal cable
• 1 *  Micro USB Cable
• 5 *  Servo Cable
• 1 *  DBUS Cable
• 1 *  Screw pack
• 3 *  Cable tie
• 4 *  Double-sided Adhesive
• 1 *  Manual





Packaging Details
  • Unit Type: piece
  • Package Weight: 0.1kg (0.22lb.)
  • Package Size: 5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)
