Item specifics
  • Aerial Photography: Yes
  • FPV Operration: No
  • Gyro: as descriptions
  • Remote Distance: as descriptions
  • Camera Integration: Camera Included
  • Brand Name: EACHINE
  • Connectivity: Wi-Fi Connection,Remote Control
  • Frequency: as descriptions
  • Action Time: Others
  • Main Rotor Diameter: as descriptions
  • Model Number: JXD 510G
  • Control Channels: 4 Channels
Product Description




Note:
This version comes without battery, charger, receiver or remote control.
Different from the RTF version, the ARF comes with F3 6DOF flight controller and 2205 2300KV brushless motors.

Item Specification Features

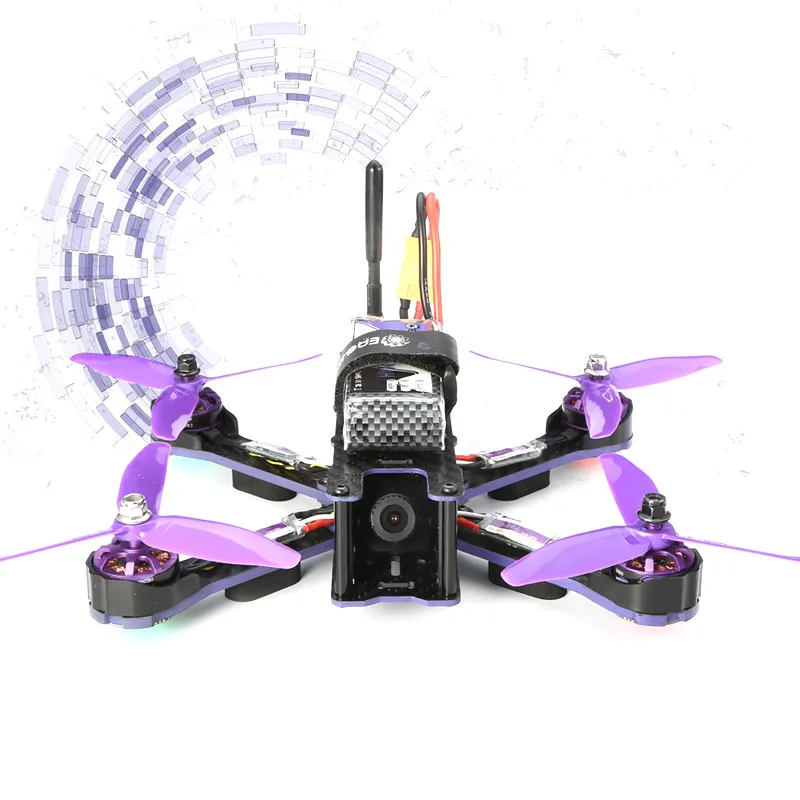

Eachine Wizard  X220

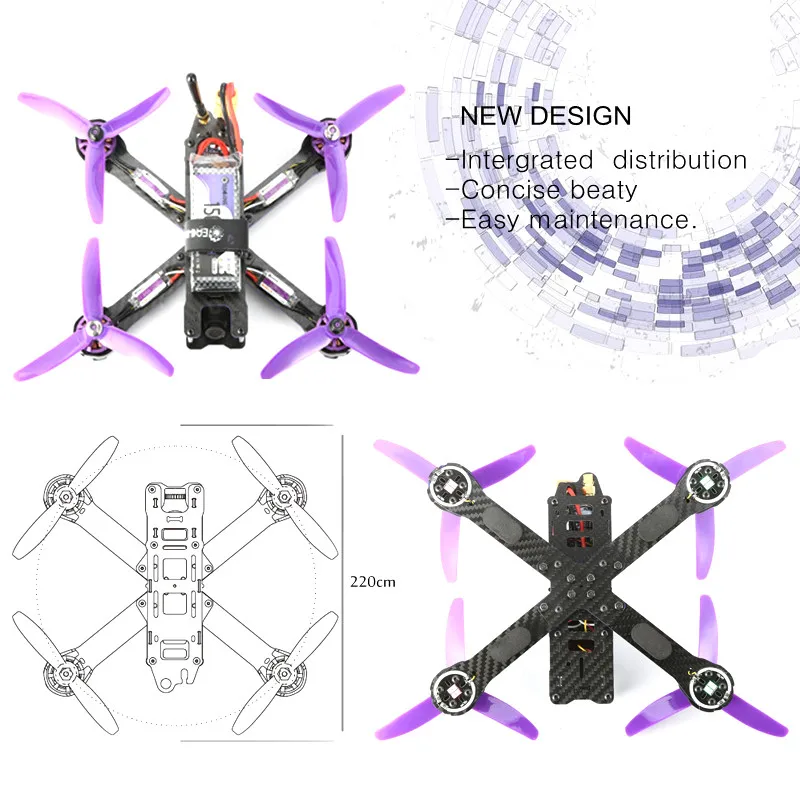

Wheelbase: 220mm
GMachine arm: 4mm carbon fiber
Flying times: 12 minutes
Weigh: 364g (without battery)
Take off weigh: 535g


Compatible with max 5 inch propeller
Compatible with 2206, 2208 motor
Can be used with 4S/3S battery
With Seft-protection function

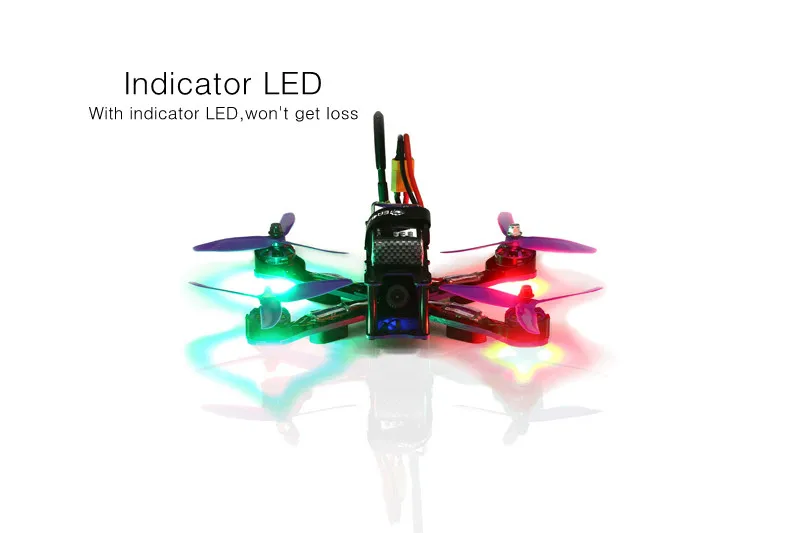

With direction indicator LED
Inclined motor base design, fast speed
Removable protection motor base
2205 2300KV Motor
KV : 2300
Propeller :  5 inch


Eachine 20A BLHELI_S  ESC
Item name : 20A BLHELI_S  ESC
Con.Current : 20A
Input Voltage : 2-4S
BEC : No
Programming : YES
Firmware : Blheli_S
Weight :7.9g
Size(PCB) : 27*12mm


700TVL Camera
Power supply : 3.6-5.5V (powered off TX)
Power consumption : 60mA @5V
Imager : 1/3” CMOS, 700TVL
Angle : 127° diagonal FOV, 110° horizontal FOV
FPV tuned light handling
System : PAL
Lens : 2.8mm IR coated
FOV : 127°diagonal 110°horizontal (ideal for fixed camera)
Operation temperature : -20 to 70°C
Square : 29 X 29 X 23.5mm
Lens extrude (LxDia) : 15mm X 14mm
Weight : 12g

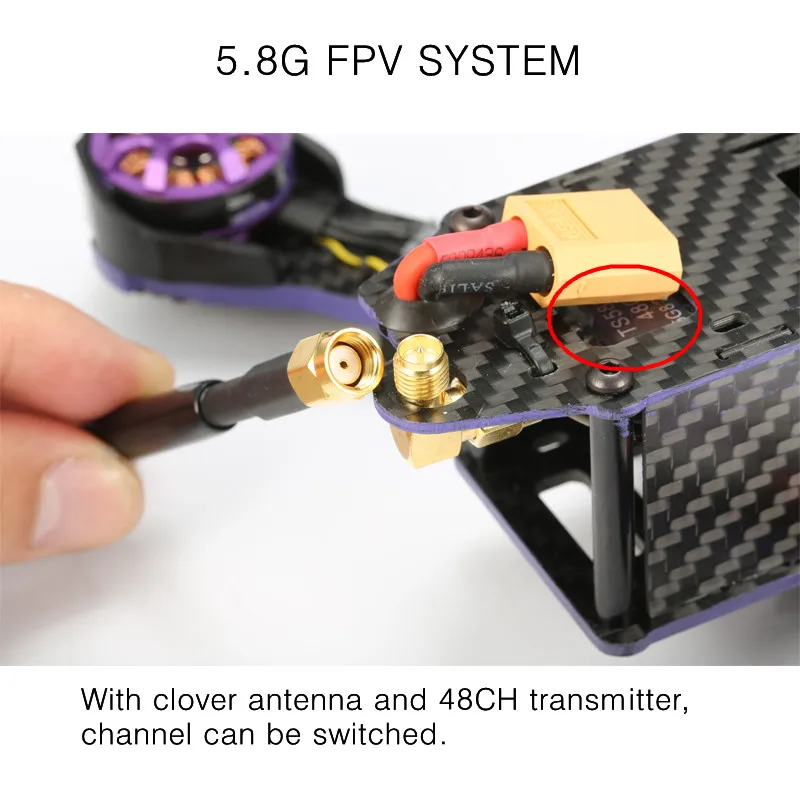

5.8G 200mw 48ch Transmitter
Item NO.: TS5823S
Video Format  : NTSC/PAL
Output Impedance : 50 Ohm
Output Power : 23-24dBm

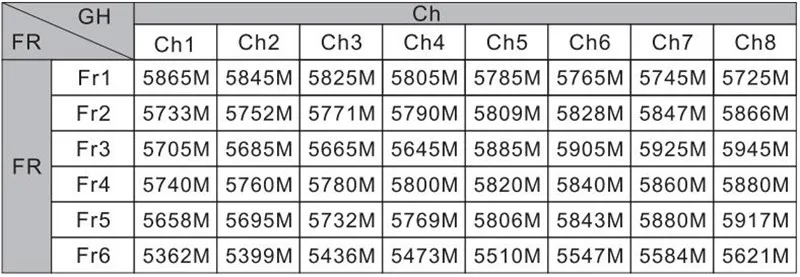

Channel:48 CH
Operating Voltage : 7V-24V
Supply Current : 190mA
Operating Temperature : -10~85℃
Video Width : 0~8.0 MHz
Audio Carrier Frequency : 6.5 MHz
Video Input Level : 0.8~1.2 Vp-p
Video Input Impedance : 75 Ohm
Audio Input Level : 0.5~2.0 Vp-p
Audio Input Impedance : 10K Ohm
Connector: RP-SMA Female (Inner needle)
Antenna Connector:  RP-SMA Male (Inner hole)
Dimension: 40mm x 23mm x 8mm
Weight: 7.3g
Flight controller
F3 6DOF

Kingkong 5040 3-Blade Propeller
Color: purple
Quantity: 10 Pairs
Mounting Hole: 5mm
Weight: 137g
Size: 140*140*65 mm



Package included:
1 x Eachine Wizard X220
2 x 2205 KV2300 brushless motor CW
2 x 2205 KV2300 brushless motor CCW
4 x Eachine 20A BLHELI_S  ESC
10 x Kingking 5040 3-blade propeller purple CW
10 x Kingking 5040 3-blade propeller purple CCW
1 x F3 6DOF flight controller
1 x 700TVL camera
1 x 5.8G 48CH 200mw transmitter
1 x Antenna
1 x Battery strap
2 x Wrench



















Packaging Details
  • Unit Type: piece
  • Package Weight: 0.82kg (1.81lb.)
  • Package Size: 20cm x 20cm x 20cm (7.87in x 7.87in x 7.87in)
