Item specifics
  • Type: Mini
  • Package: Yes
  • High Definition Support: 1080P (Full-HD)
  • Sensor Technology: CMOS
  • Model Number: RE24
  • Brand Name: REOTGTU
  • Memory Card Type: MicroSD / TF
  • Built-in Memory Size: Non
Product Description




This is the first HD-DV Sunglasses, you can shoot high-definition video, taking high-quality photo

s, multifunctional sports sunglasses, supporting Micro SD(TF) card, With simple operation, elegant d

esign, small size, it is easy to carry. It’s a good tool for archer, hunting, fishing, police, traveling an

d living etc. It can real-time record of every memorable moment in life, with smooth and elegant de

sign for men and women, deeply favored by the users.

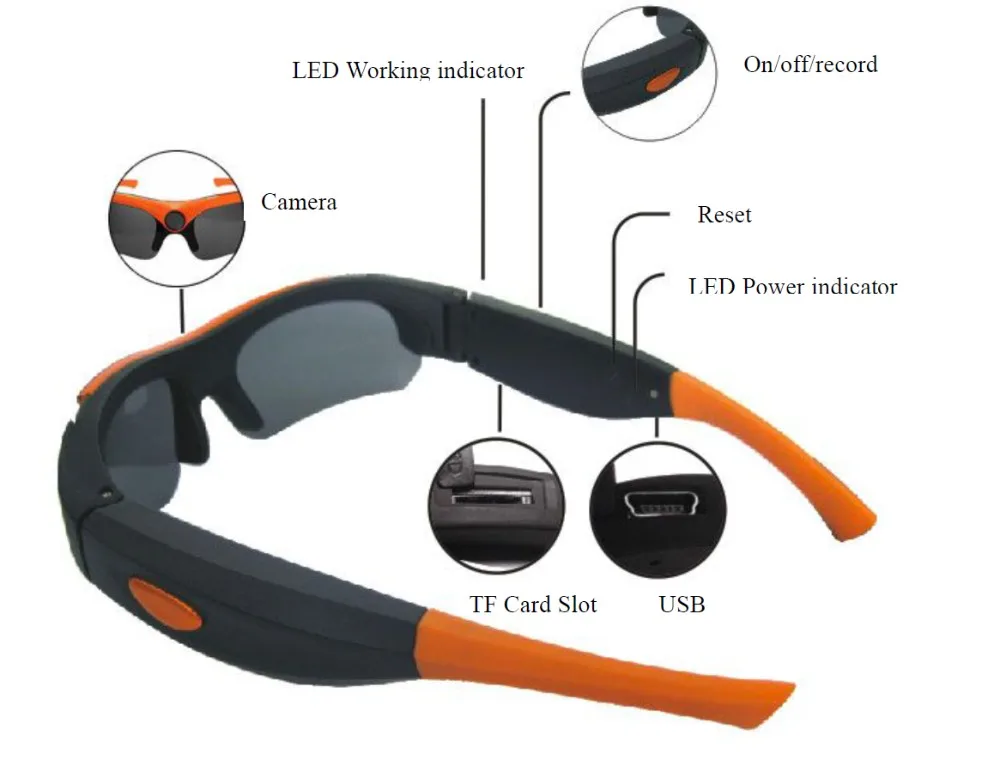

A) swich on/ Take photo /shooting

Swich on: Press the button to turn on the device. Then the blue light is on, The device begin


Take photo:Under Standby mode, short press the power button once, blue lights flashing after 1 time,

blue lights and complete a photo。

Camera shooting: under standby mode, long press the power button about 2 seconds to letit

go, continuous flashing blue lights after three times, enter the camera shooting mode, short press

the power button, blue light keep on, pause the video and complete a video file.

B) Long press key for 3 seconds, after the blue lights flashing three times, working indicator light(blue)

and power indicator light (red) light at the same time, then the device automatically save the file and shut


Note: 1. Before use, please insert memory card

2. Turn it off first when you pick up the card, to avoid data loss or damage the equipment an

d the TF card

3. when the memory card is full or there is no card, red lights and blue lights flashing quickly,

then automatically save data and shut down

4. please don\'t camera towards the sun, otherwise it will damage the camera

C) Reset:

If the device cannot work normally, crashing, failing to camera, please press the reset button to reset

D) Time setting:

1. Insert TF card first, after connecting the computer ,you will find new removable disk

2. Open the "time" text document, input the time settings string, the string is composed of "year.

month.Day hours.minutes.seconds show/hide flag" ,set-up times are as follows:

With time shows: 2013-11-28 23:59:59

a. The above time string are the time you want to set, attention to the space between year Month day

and Hours minutes seconds,

b. The file of set-up time has been copied to the root directory, uninstall hardware, boot, complete

set-up time.

c. The time has been reinstalled will be saved to the camera.

E) PC camera:

you can press the power button when connect the device with computer USB interface, you can enter

the PC Camera (webcam) mode. In this mode, your camera can be used as a PC camera, with your friends

online video chat, take photos, and so on.

Note: According to the diffenece of computer system or configuration, the computer may not detect

the camera function by once, if the computer can not enter the camera function, but into a Udisk. Please

remove the camera and connect the camera to the computer again;

F). Charge:

Connect to computer USB interface or charger. During the charging, the red light flashes slowly. When

the battery is fully charged, green LED lights

Note: If device fails to start or blue light flash quickly, in most cases the battery is no power and needs

to be recharged.For the initial 3 times,it is recommended that you charge the battery for at around 5

hours for peak performance.

Please do not charge for over 5 hours.

aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.3kg (0.66lb.)
  • Package Size: 19cm x 9cm x 7cm (7.48in x 3.54in x 2.76in)
